Description:
First Glance

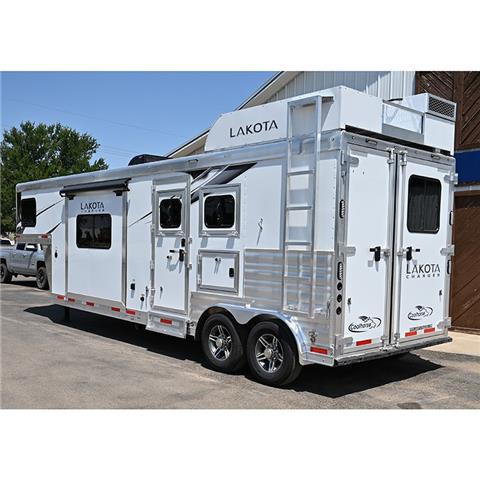

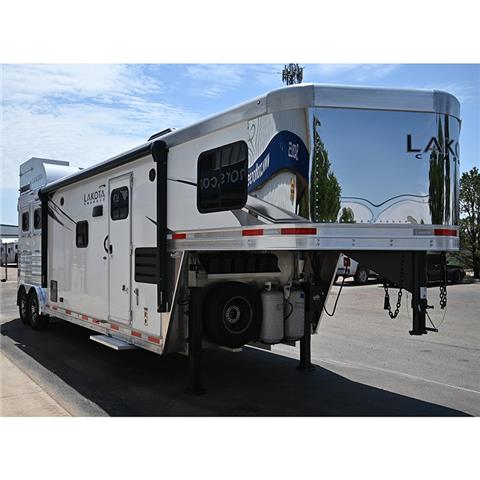

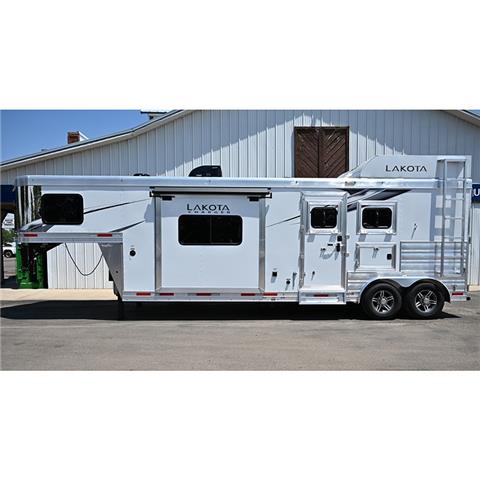

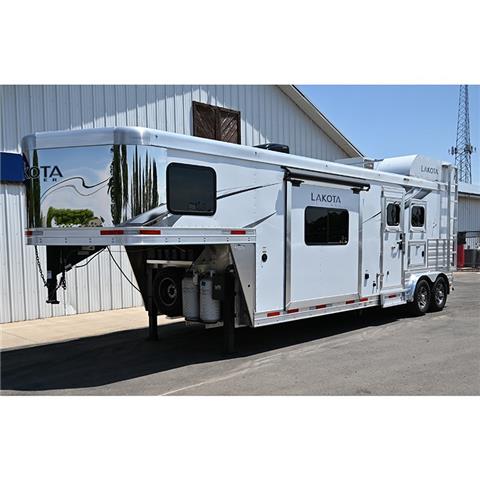

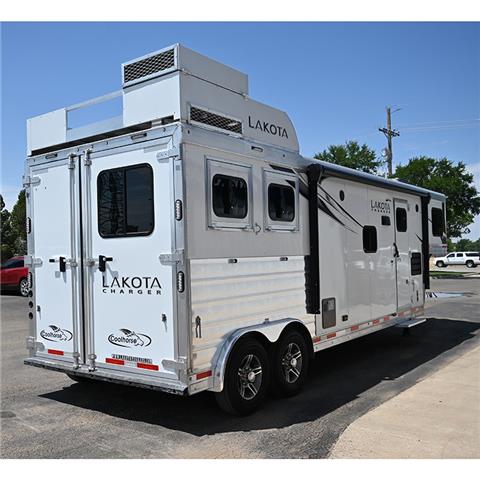

2023 Year Model Lakota
2 Horse
Charger Model #C8211RK with Lakota Conversion
11’ Short wall with slide out
Jack knife sofa in slide
Mangers, hay rack, LP Onan Generator on roof
8’ wide x 7’6” tall x 22” long deck
16” Aluminum wheels with 10 ply tires

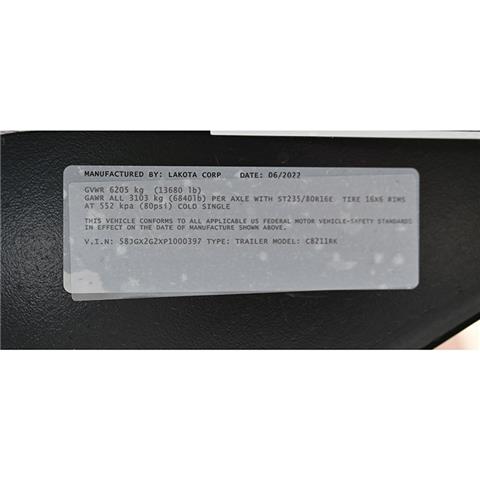

Vin: 58JGX2G2XP1000397
6 year warranty on frame, 2 year warranty on LQ, 1 year hitch to bumper on workmanship
Horse Trailer Specs
2023 year model
Manufacturer: Lakota
All aluminum (floor, sides, roof, & frame). Pre painted white aluminum skin on top and aluminum slats on bottom
8’ wide x 22’ long box x 7’6” tall
Drop down windows on head wall (2)
Drop down window bars on head wall (2)
Drop down windows on rump (2)
Oversized sliding bus window on load door (1)

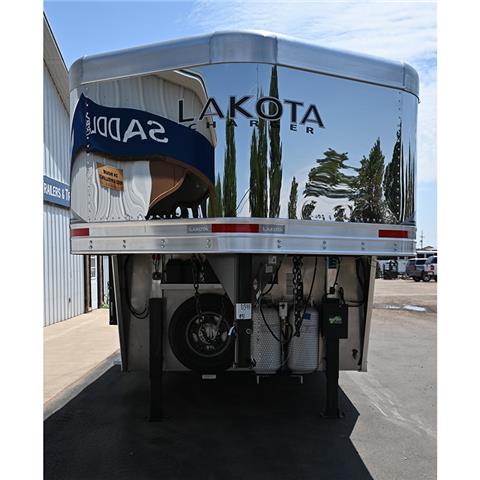

Stainless steel wrap on nose
1 mangers with access door 22” deep

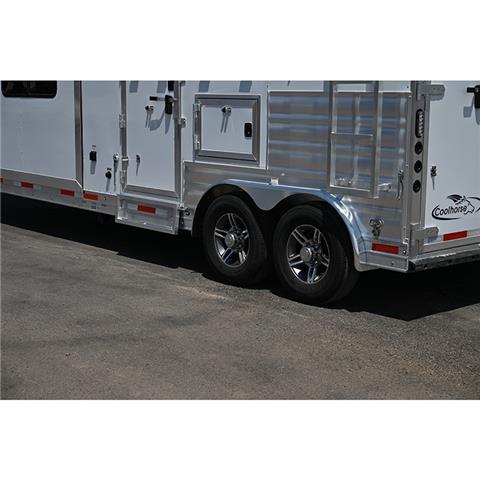

2 – 7,000 lb rubber torsion axles
Electric brakes on both axles
GVWR weight: 13,680 lbs
Empty weight: 9,310
16” Aluminum Wheels
Goodyear 235/85R16 Tires 10 ply radial tires
Rubber dock bumper
Escape door on street side with fold down step and camper latch
1 divider – front has removable stud panel- all spring loaded
Stall width measurements (wall measurements) 39”-43”

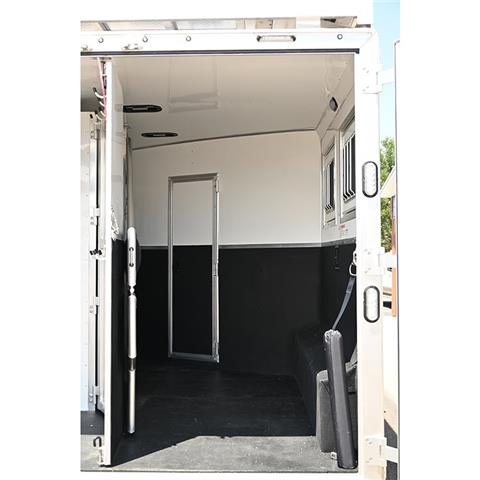

Walls rubber lined
Rubber mats
Divider pads
Insulated and lined ceiling in horse compartment
2 cargo lights in horse compartment
2 pop up roof vents
4 Load lights –2 on back of trailer, 1 curb side, 1 street side
13’ Power Awning on curb side

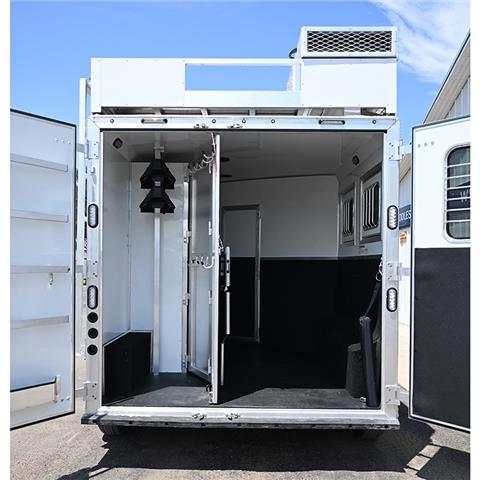

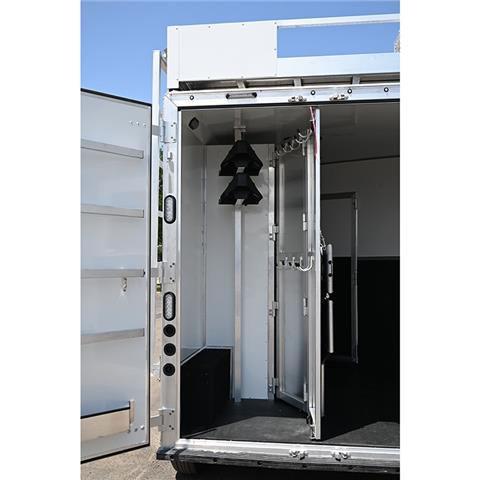

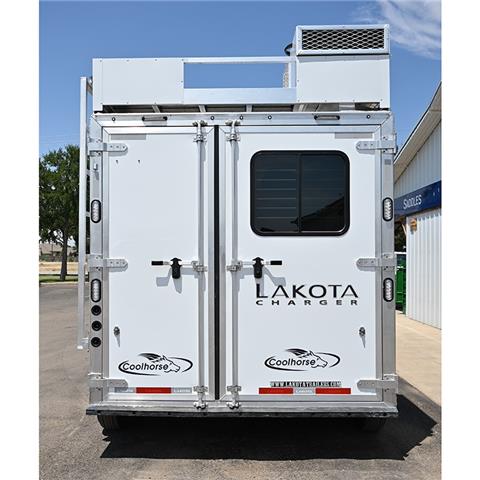

Collapsible Rear tack includes: 2 tier adjustable saddle rack, 10 hooks, blanket bars and brush tray on door
Big Foot Double Leg Hydraulic jacks
3-12Volt batteries in tray under nose
2 40 Lb LP Tanks
7 way RV light plug, 2 5/16” Coupler, safety chains, and emergency brake system
Hay Rack with ladder
3.6 Onan LP Generator in compartment on roof
Living Quarter Specs
11’ LQ Conversion by Lakota w/ flush floor slide out
Slide contains sofa
Templer Abby interior package
Insulated floor
RVIA Certified
2 40 Lb Liquid Propane (LP) tanks mounted under enclosed neck
3 - 12 volt house batteries
Panel walls and panel ceiling
Simulated hardwood linoleum floor
Day night shades on all windows

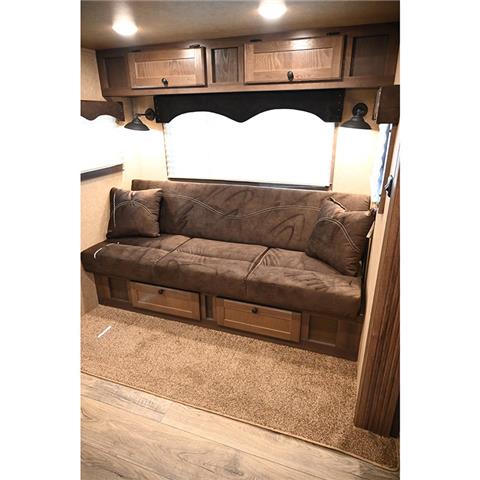

68” sleeper sofa x 41” wide when out

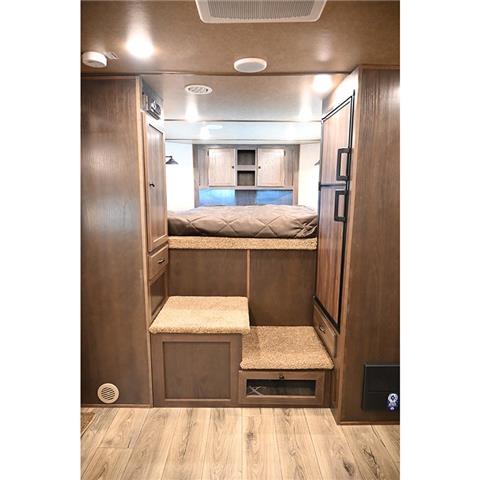

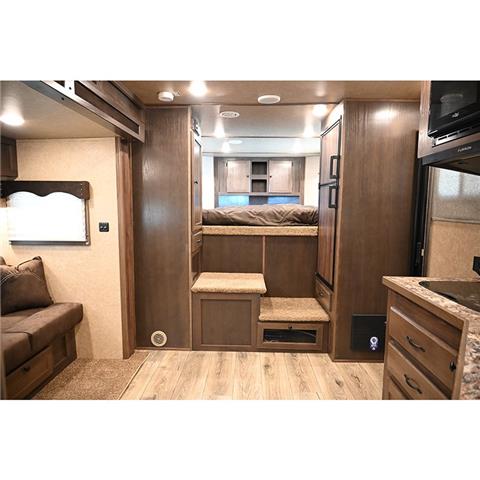

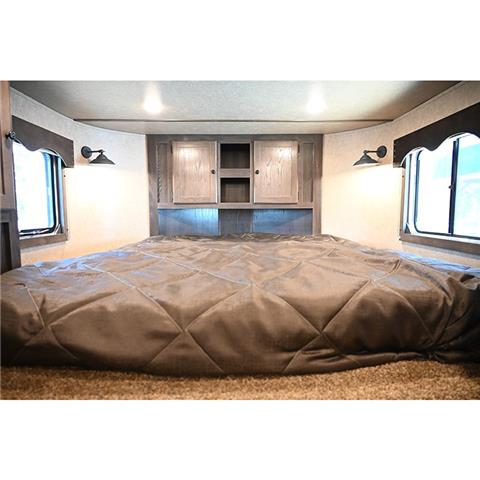

Queen mattress w/ dropped nose in bedroom for extra headroom (38” height from floor to ceiling in nose)

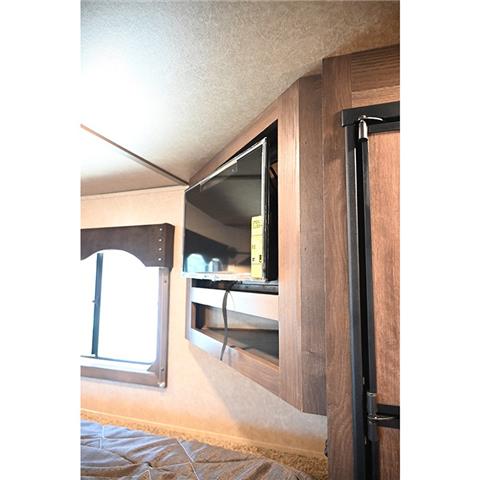

Sansui flat screen tv w/ DVD/AM/FM/CD player

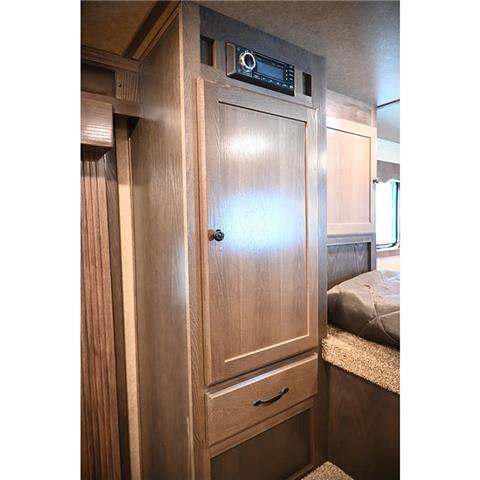

Jensen AM/FM/CD player w/ USB port

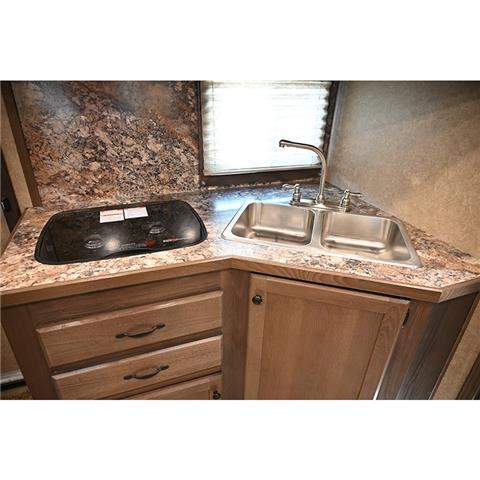

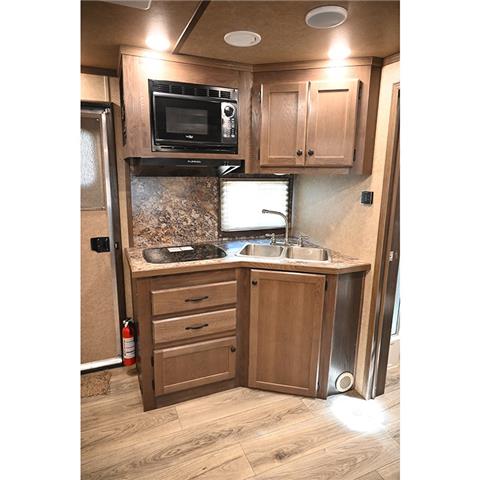

2 burner cooktop with oven by Suburban

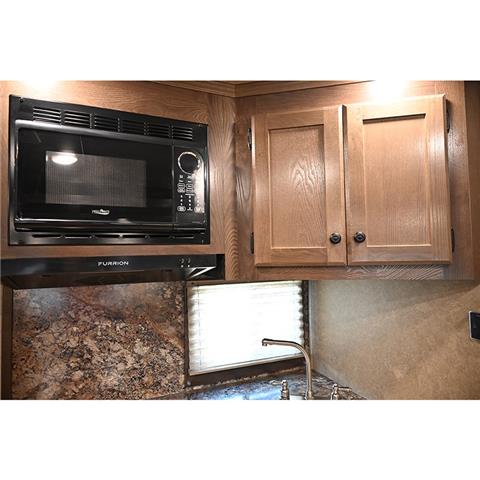

High Pointe Microwave
Double Kitchen sink

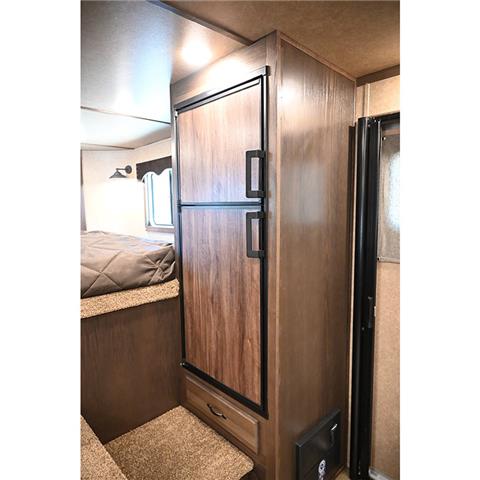

6.0 Dometic 2 way refrigerator (LP or 110 Volt)
2 windows in nose, 1 window in slide, 1 window on curbside
Power TV antennae
13,500 BTU air conditioner ducted
20,000 BTU Ducted LP furnace
Digital thermostat
6 gallon hot water heater (LP) w/ start switch in LQ
Fresh water tank

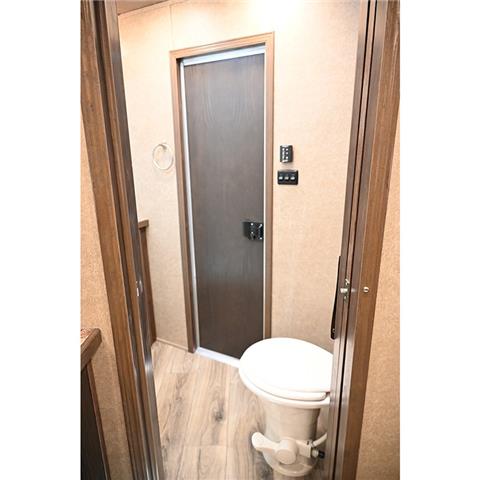

Pocket door into bathroom

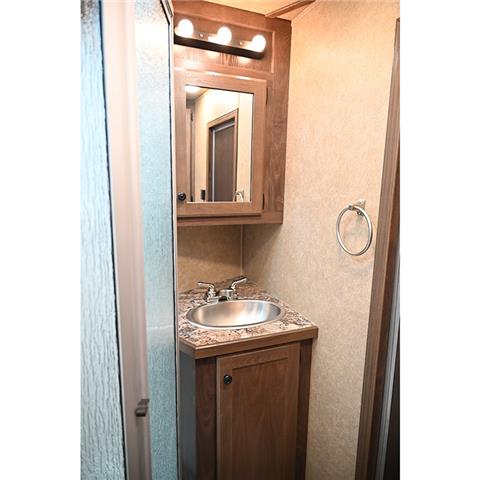

Bathroom sink with vanity

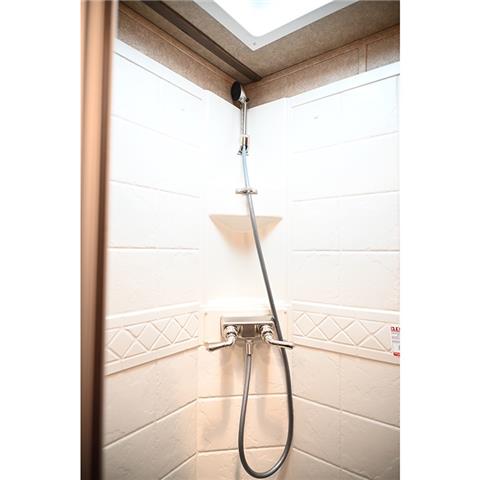

32” Neo angle Shower with skylight

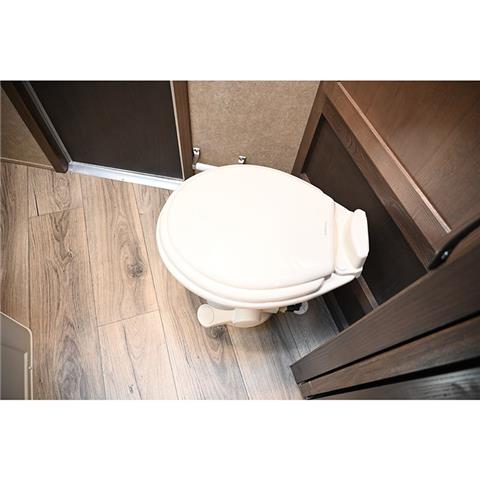

Dometic toilet
Power Vent in ceiling of bathroom by Maxfan
24” Walk through door in bulkhead wall
Safety systems: LP detector, Carbon monoxide detector, and fire extinguisher
13’ Power awning and exterior speakers
Black and gray tanks with monitor system in LQ (35 gallons each)
3.6 LP Onan Generator on roof
Black painted exterior accessories including air conditioner cover, tv antennae, refrigerator vents, & hot water heater panel
