Description:

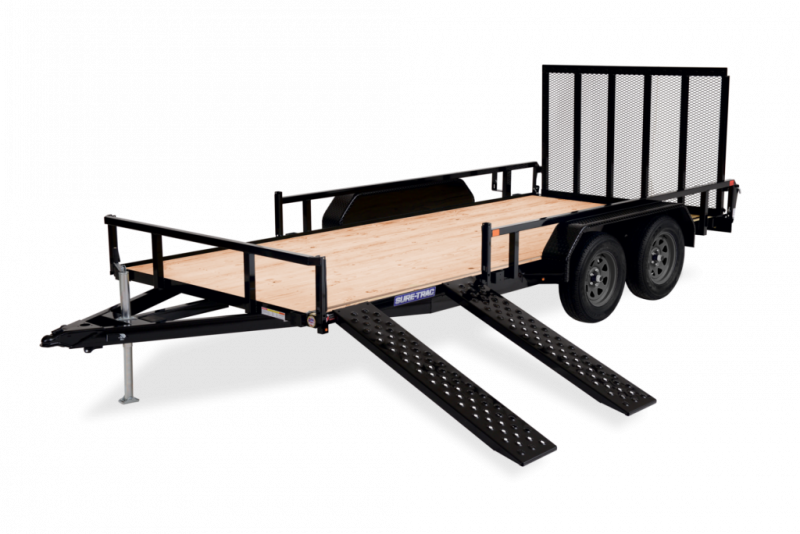

The Tube Top ATV Utility Trailer is a versatile and practical solution designed for transporting ATVs and other recreational vehicles. Featuring innovative side loading ramps, this trailer allows for easy loading and unloading from both sides, making it convenient to maneuver in tight spaces and efficiently load multiple vehicles.
In addition to the side ramps, the trailer is equipped with a rear spring assist ramp gate. This feature reduces strain on your back, making it simple load vehicles with minimal effort. Together, the side loading ramps and spring assist rear gate facilitate quick and efficient loading of multiple ATVs, perfect for group outings or events.
7 x 12 Tube Top ATV 3K Idler
x
GVWR (lbs)
2990
GAWR (lbs/axle)
3500
Curb Weight
1370
Payload
1620
Width
7
Length
12
Coupler Height
0
Type
OPEN
Axle
3500 lb. Spring Idler
Connector Plug
Flat 4-pin
Coupler
2” A-Frame
Crossmembers
3” x 2” x 3/16” Steel Angle
Decking
2” Pressure Treated Pine, Board Retainers
Exterior Finish
Industrial Grade Polymer Finish
Exterior Lights
Full LED, DOT Compliant
Exterior Storage
Spare Tire Carrier
Fenders
Square Rolled Steel Tread Plate
Frame
3” x 2” x 3/16” Steel Angle
Hubs
Easy Lube

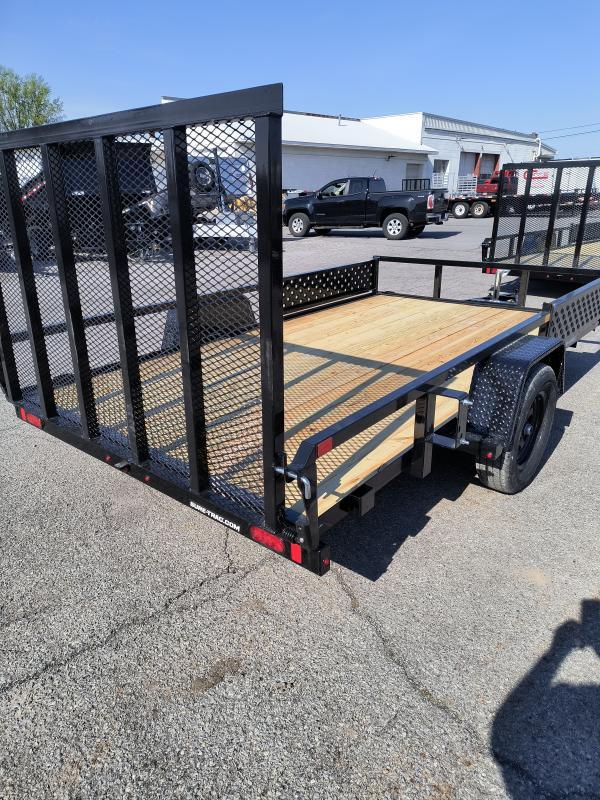

Ramp(s)
4’ Fold-Flat Spring-Assist with Grab Handle, Self-Retained Gate Pins
Safety Chains
DOT Compliant
Sides
13” Tall, 5’ Fabricated Steel Ramps (Side Storing)

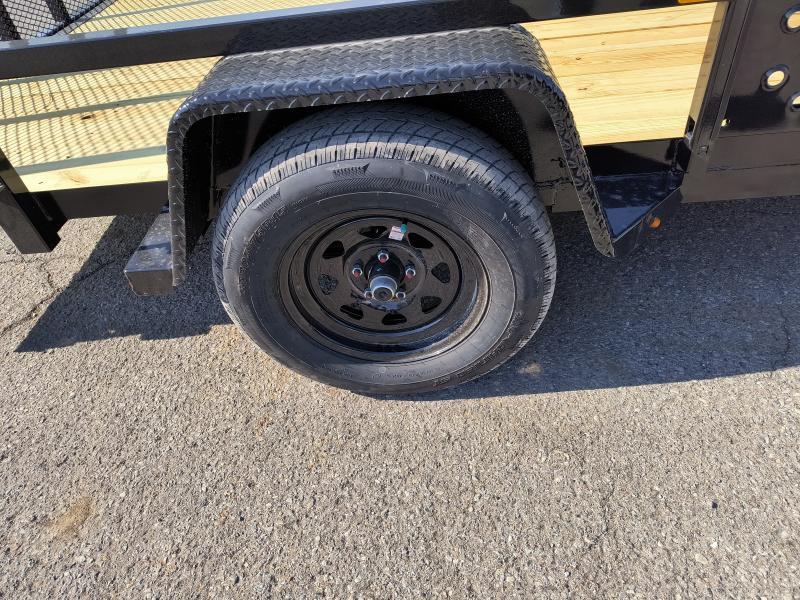

Tires
ST205/75R15C 6-PR

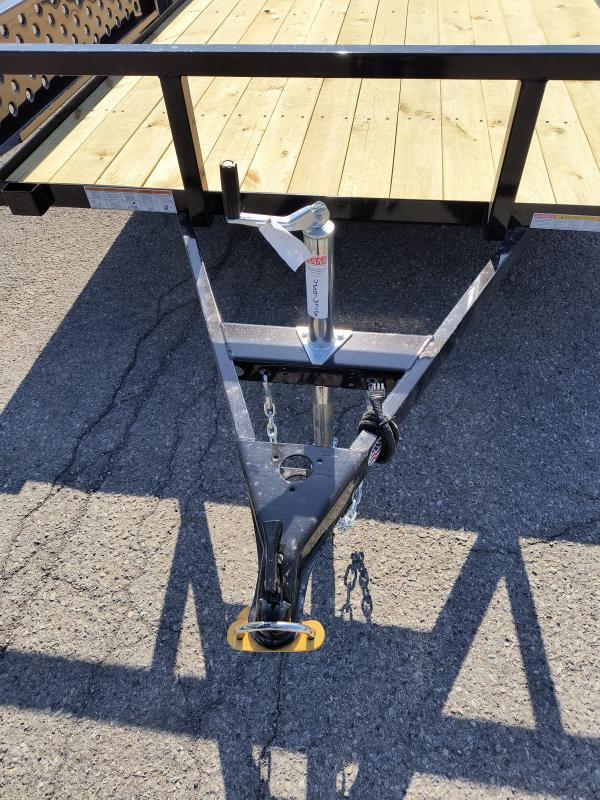

Tongue
3” Steel Channel
Tongue Jack
2K Set-Back
Top Rail
2” x 2” Steel Tube
Uprights
2” x 2” Steel Tube
Wheels
15”, 5-Hole Steel
