Description:
OVERVIEW
DUMP TRAILERS
From smaller homeowner grade dump trailers to heavy duty/commercial grade models, we offer a lineup of feature rich, intelligently crafted dump trailers that work for you to get the job done day in and day out. You’ll find innovative design everywhere you look -- including TELESCOPIC CYLINDERS, thicker and more durable DUMP SIDES and uprights, LOW PROFILE design, premium hydraulic systems and hoists, and ENGINEERED BEAM TECHNOLOGY.
Customizable options include multiple GVWR upgrade packages with heavy duty axles, 7 ga body upgrades, a variety of battery and charging options, hydraulic jacks, loading ramps, gooseneck dump packages, multiple side height options, and much more.
STANDARD FEATURES
AXLES: 2 - 7,000 lb Drop Super Lube, Self-Adjust Electric Brakes
BATTERY/CHARGER: Group 27 Series Deep Cycle Battery
with 110V 5amp Charger
COUPLER: 2-5/16” - 21,000 lb Demco EZ-Latch,
Adjustable Channel
FENDERS: 14 ga Teardrop, Diamond Plate
FRAME: Main Frame - 8” x 15 lb I-Beam
Dump Body - 5’’ x 2’’ Rectangle Tube
GATE: ”3-Way Gate (with Hold Back System)
HYDRAULIC SYSTEMS: 3 Stage Telescopic Cylinder(with High Flow
KTI Power Up/Gravity Down Power Unit)
JACK: 12,000 lb Drop-Leg
SIDES: 10 ga x 24’’, Integral with Floor
TARP: Long-Arm Tarp System

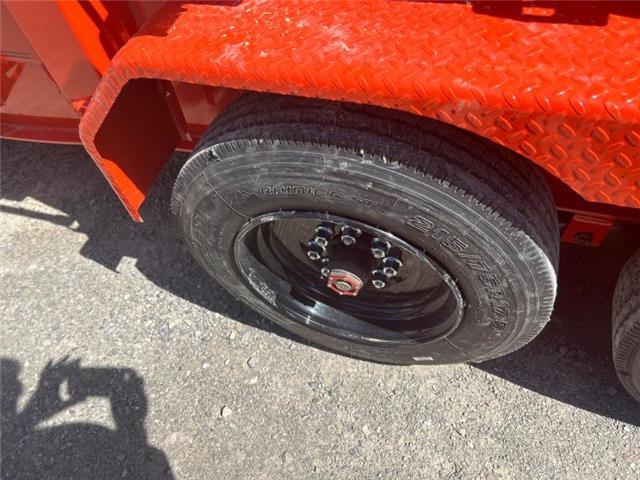

TIRES: ST235/80R16 Radial
TONGUE: 8’’ x 15 lb I-Beam, with HD V-Tongue Lid Box
POPULAR UPGRADES
24,000 lb / 18,000 lb / 20,000 lb GVWR Package
7 ga Dump Body Upgrade
32’’ / 44’’ Tall Sides
3/16’’ Heavy Duty Fenders
Raised Board Brackets
Electric over Hydraulic Disc Brakes
ST215/75R17.5 Radial Tires
Available Sizes
12’ x 82’’
14’ x 82’’
16’ x 82”
