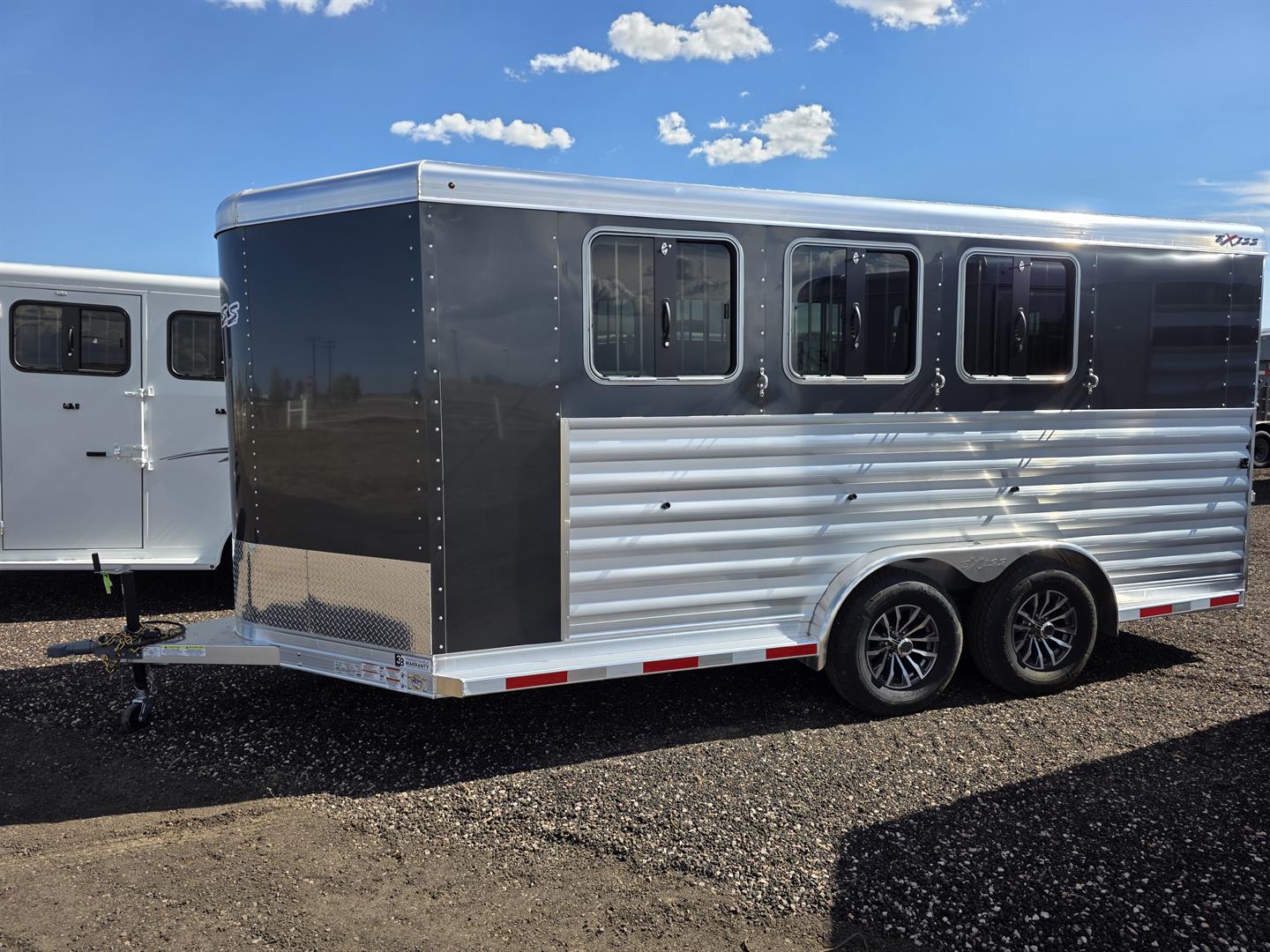

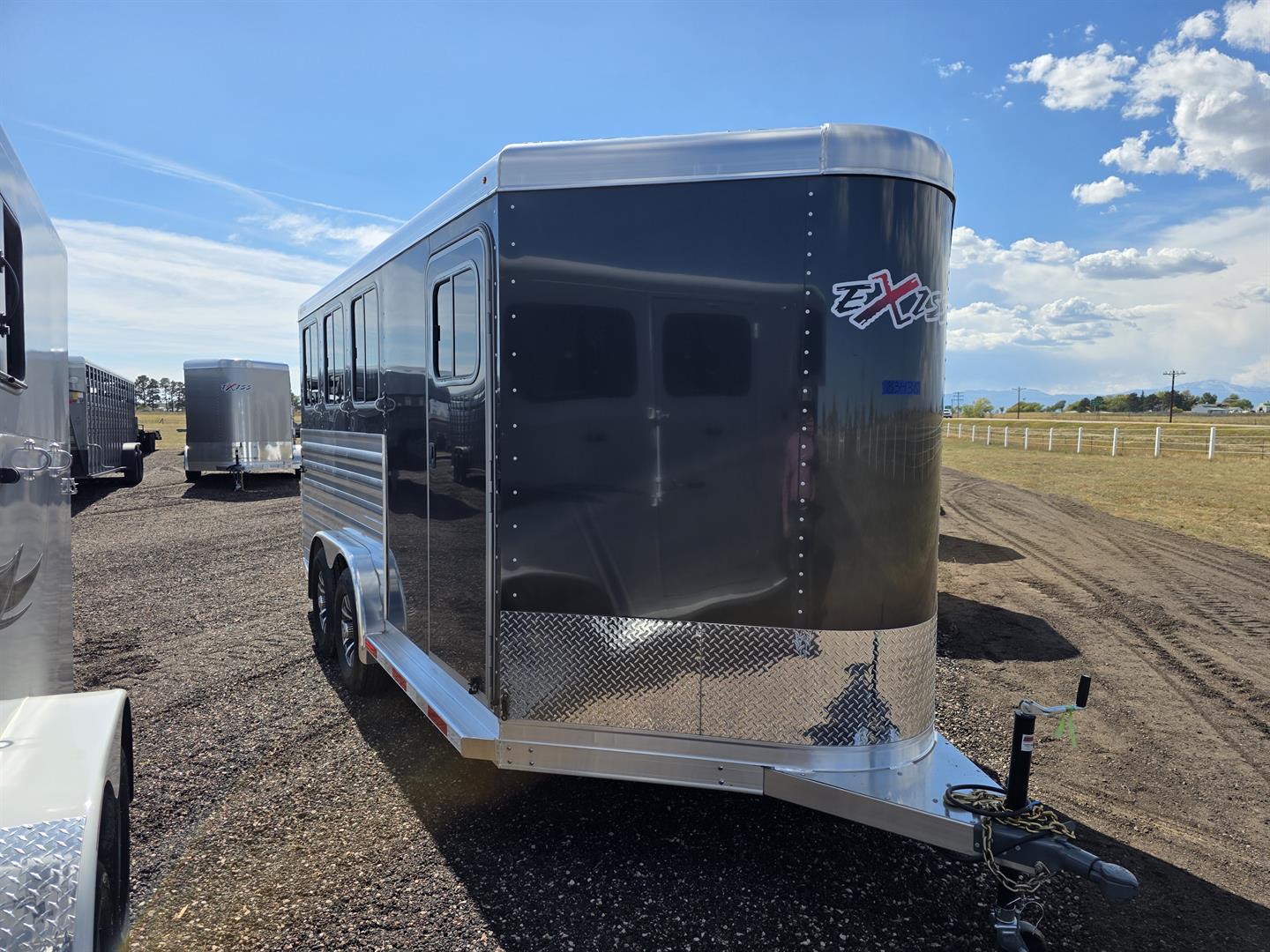

EXISS 7630 BUMPER PULL HORSE TRAILER

All-Aluminum Construction | 7'6" Wide | WERM Flooring | Rear Ramp

The Exiss7630 slant-load bumper pull horse trailer deliver an exceptional combination of quality, safety, functionality, and value. Built with Exiss's durable all-aluminum construction, these trailers are designed to provide years of dependable service while keeping your horses comfortable and secure on the road.

Whether you're hauling to a competition, hitting the trails, or traveling to your next equine event, Exiss offers the strength, convenience, and thoughtful design horse owners appreciate.

FEATURED UPGRADES

UPGRADED 7'6" TRAILER WIDTH

With an impressive 7'6" overall width and 40" wide stalls, this trailer provides additional room for your horses compared to narrower traditional bumper pull models. The extra width helps accommodate larger horses and provides a more spacious hauling environment.

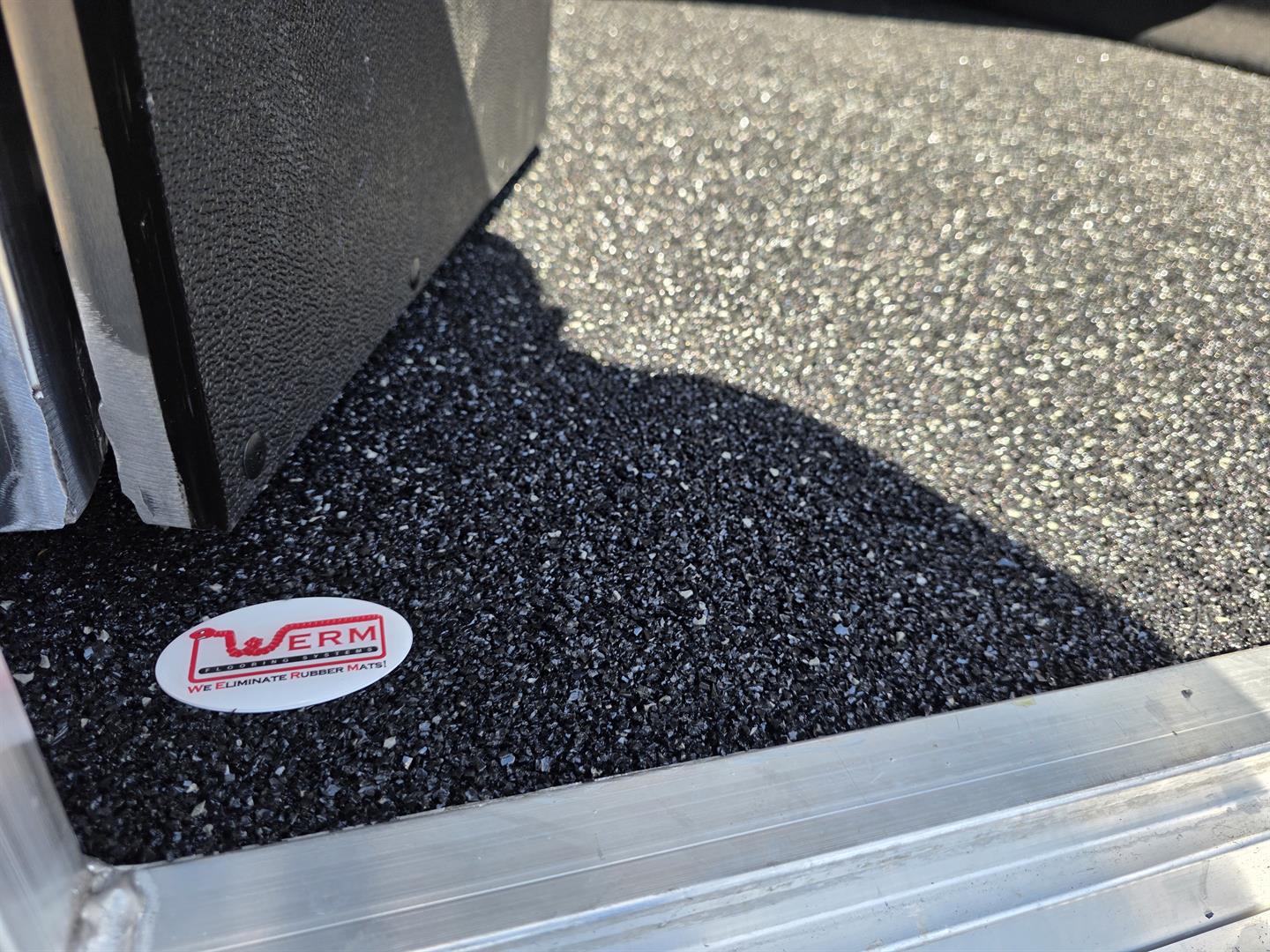

UPGRADED WERM FLOORING

Equipped with WERM flooring, a premium flooring upgrade designed to provide a durable, cushioned, low-maintenance surface in the horse compartment. WERM flooring eliminates the need to routinely pull traditional rubber mats for cleaning, making trailer maintenance easier while providing additional comfort and traction for your horses.

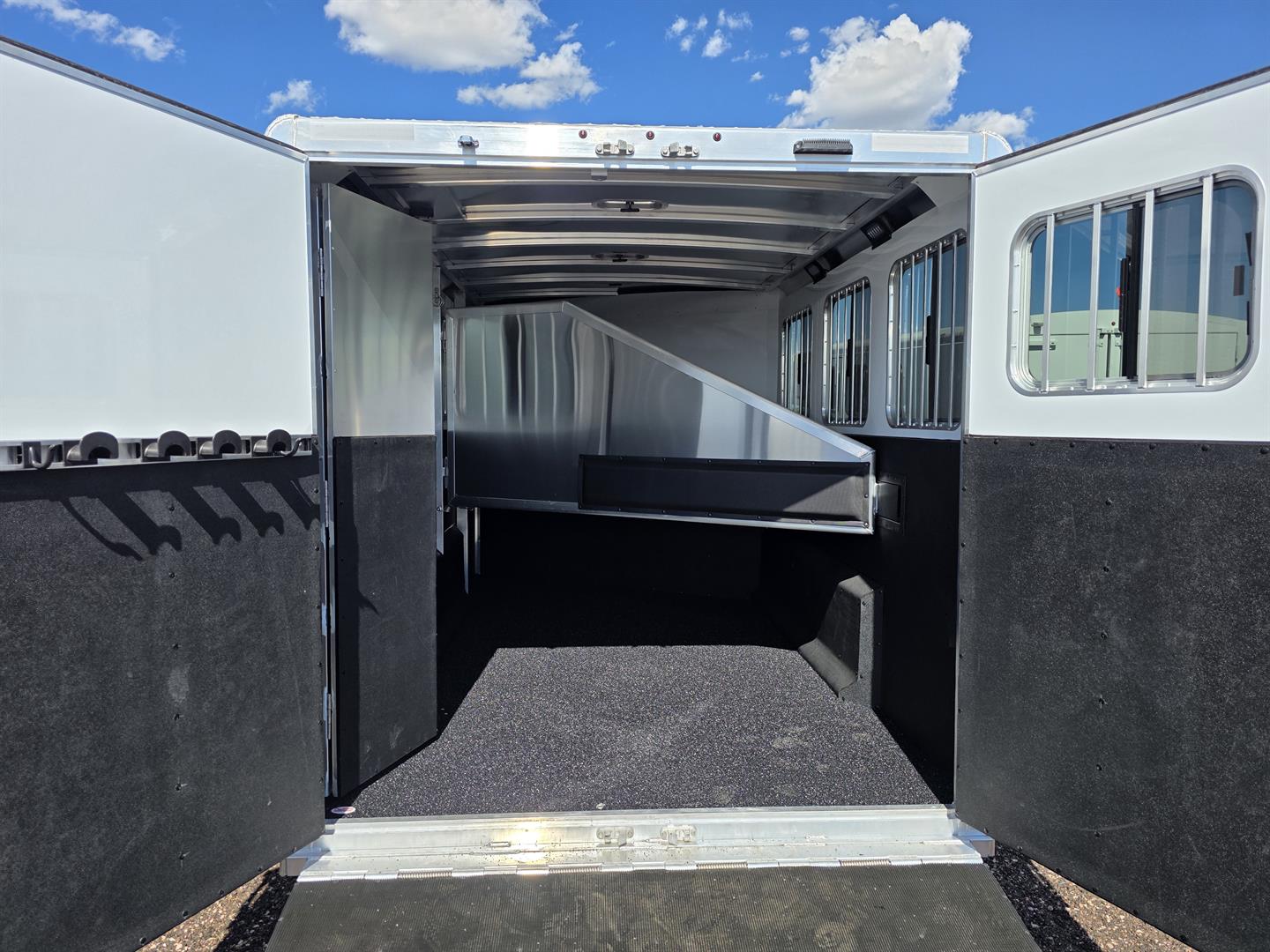

HORSE COMPARTMENT

• 7'2" interior height

• Spacious 40" wide stalls

• Padded stall dividers with body, shoulder, and head separators

• Patented fully recessed slam latches for added safety

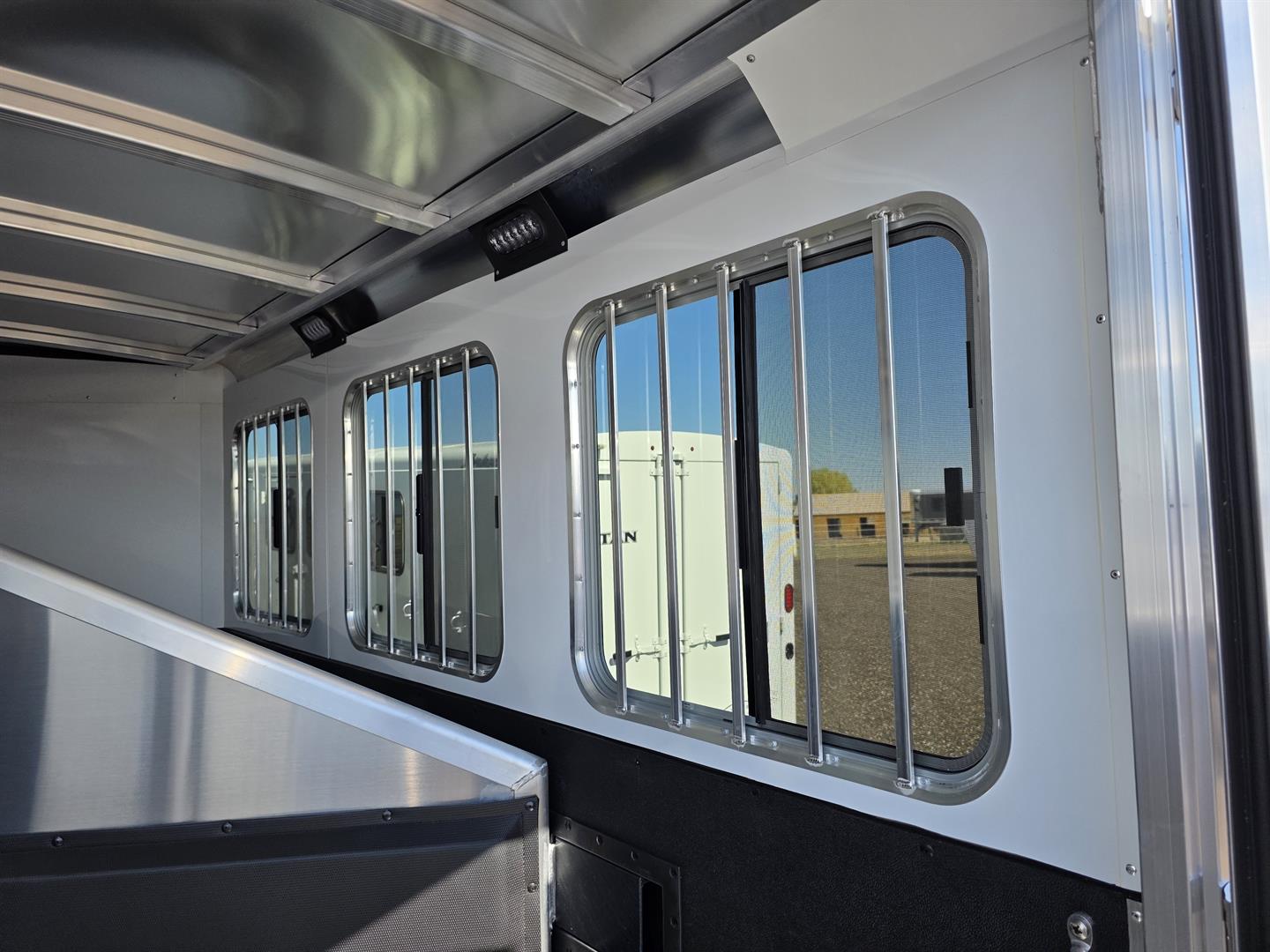

• 27" x 31" streetside drop-down feed windows with drop-down bars

• 27" x 31" curbside windows with bars and screens

• 19" x 26" window in rear loading door

• Insulated horse compartment walls lined with white aluminum

• Protective rubber lining extending 48" high with aluminum kickplates behind

• One roof vent per horse

• LED interior lighting

• Two interior and two exterior tie rings per horse

• Nylon safety strap at rear loading door

• Optional side unload door on 3-horse models

REAR TACK & DRESSING ROOM

Rear Tack

• Fold-up rear tack wall

• Adjustable saddle rack on removable post, one per horse

• Blanket bar and six halter hooks

• Interior LED lighting

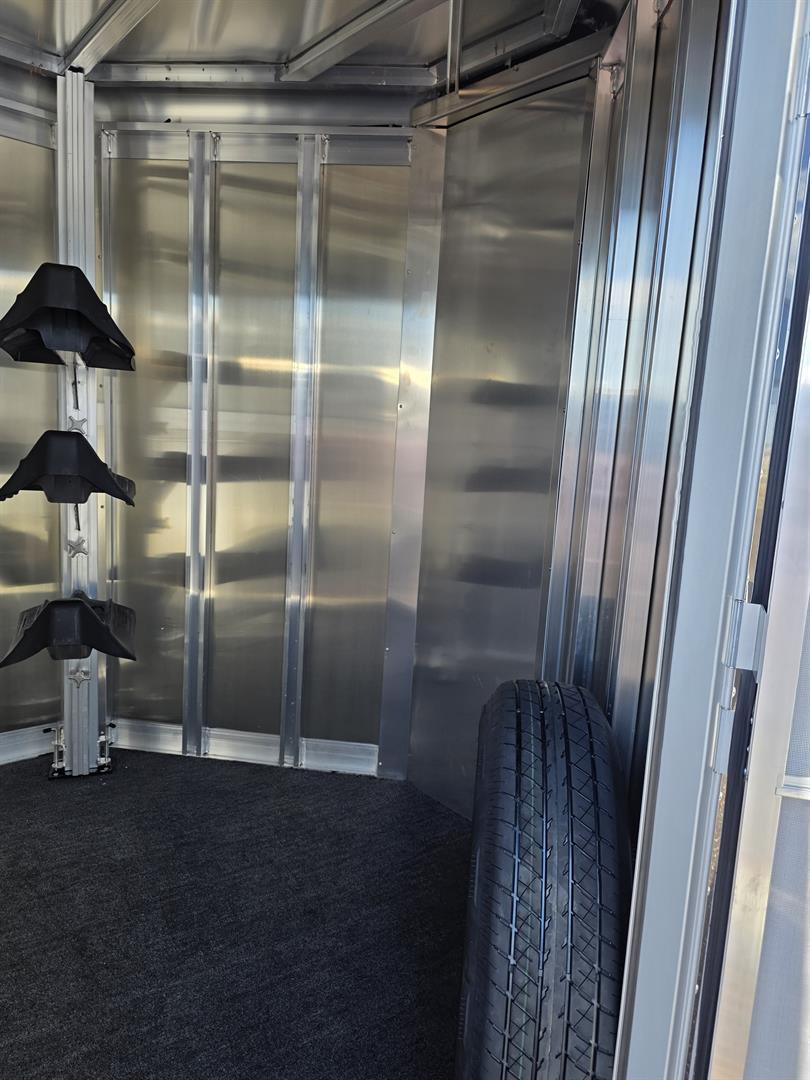

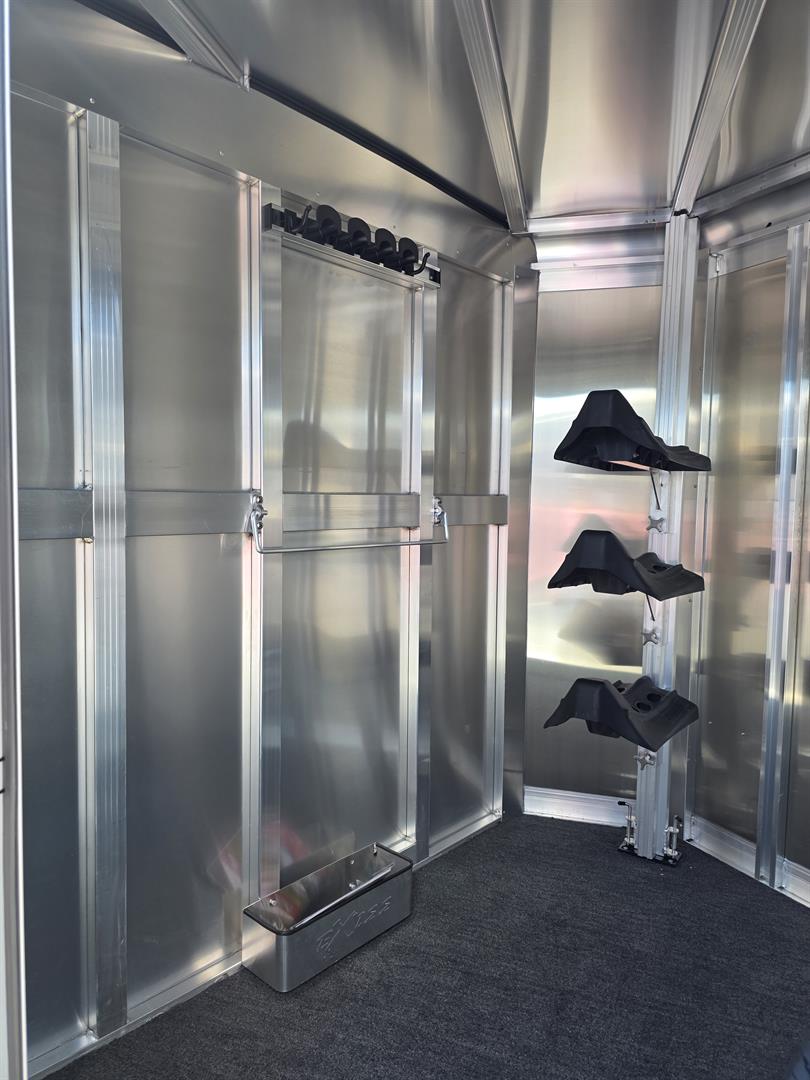

Front Dressing Room

• Dressing room with 2'4" short wall on 2H models and 2'0" short wall on 3H models

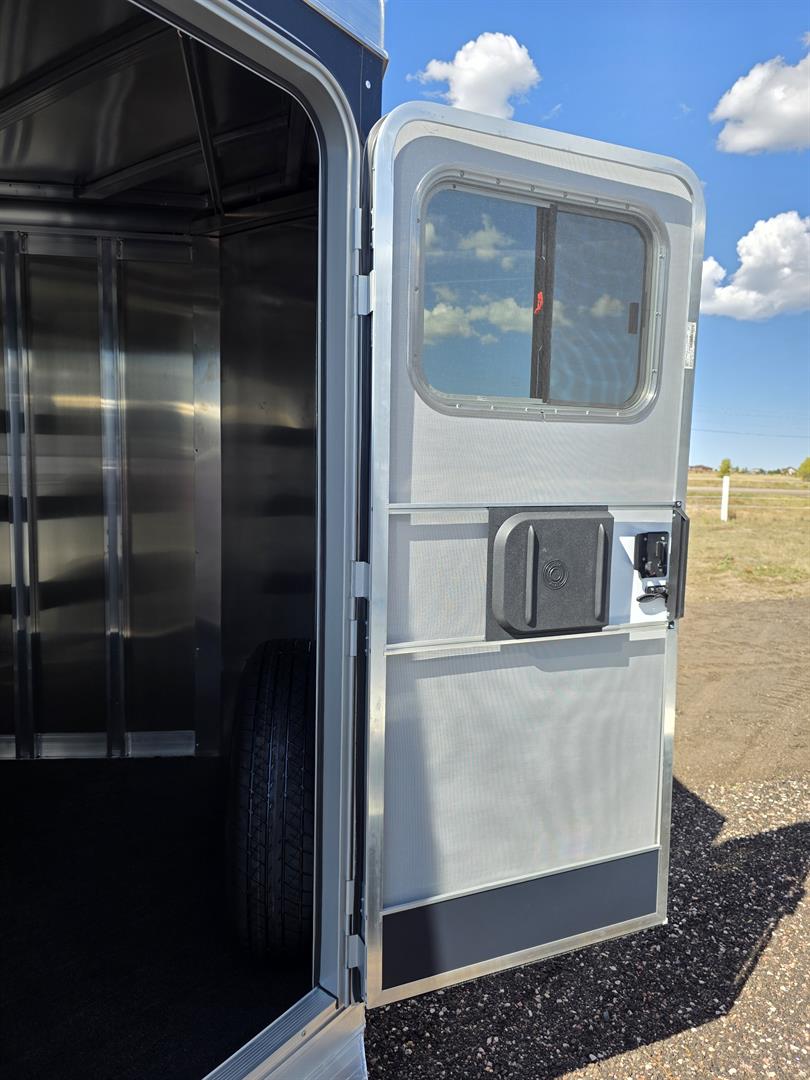

• Camper-style entry door with sliding window and screen door

• Carpeted floor

• Additional saddle rack mounting location

• Brush tray, clothes rod, and halter hooks

• Interior LED lighting

ALL-ALUMINUM CONSTRUCTION

Exiss trailers are engineered with an aluminum frame and exterior, offering strength, reduced weight, corrosion resistance, and long-term durability.

• Heavy-duty all-aluminum frame

• .040 white aluminum exterior side sheets

• Single-piece aluminum roof

• Interlocking extruded aluminum plank flooring

• 2" x 4" aluminum I-beam floor supports on 16" centers

• Heavy-duty 2" thick rear and horse-area side doors

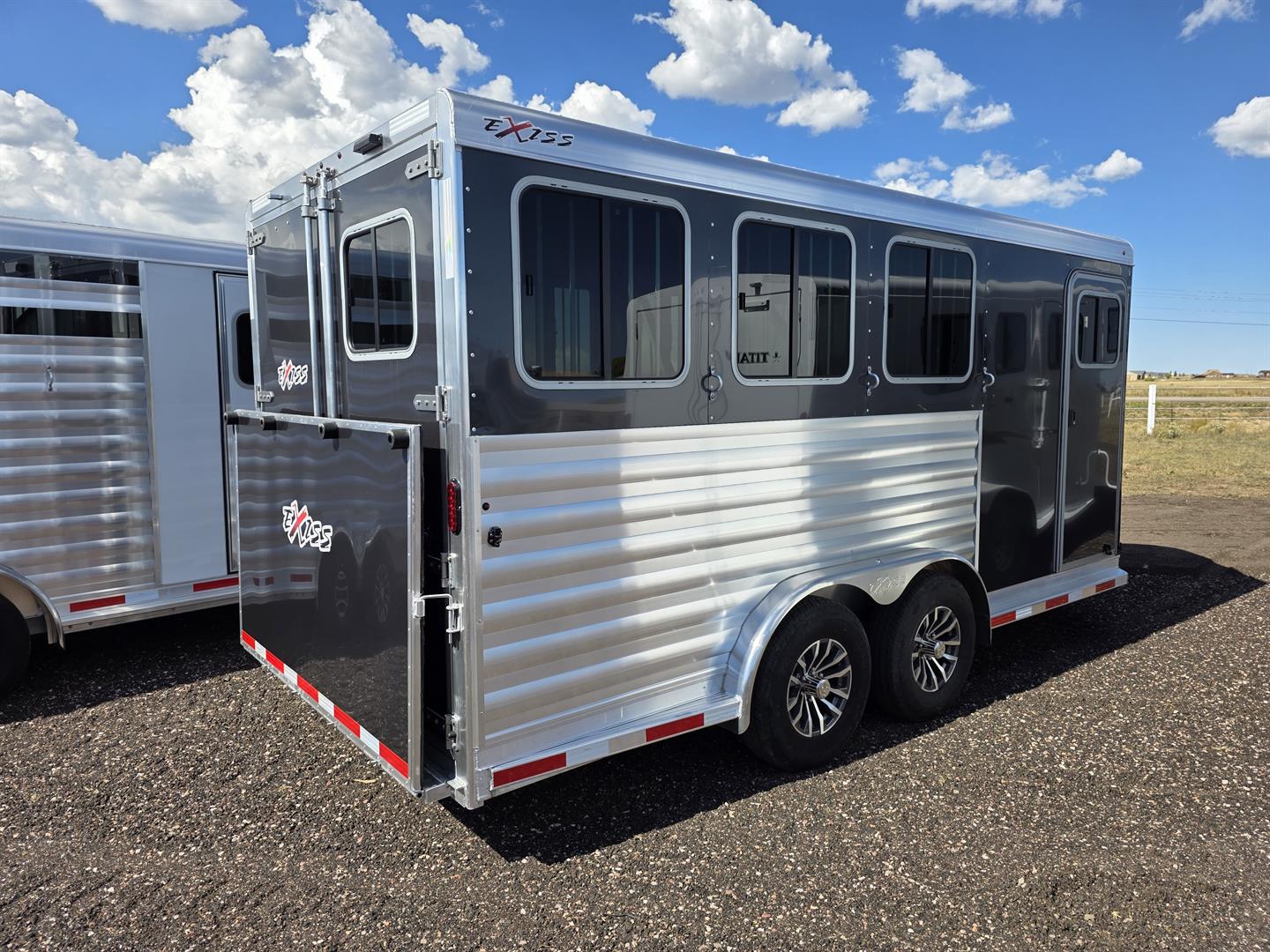

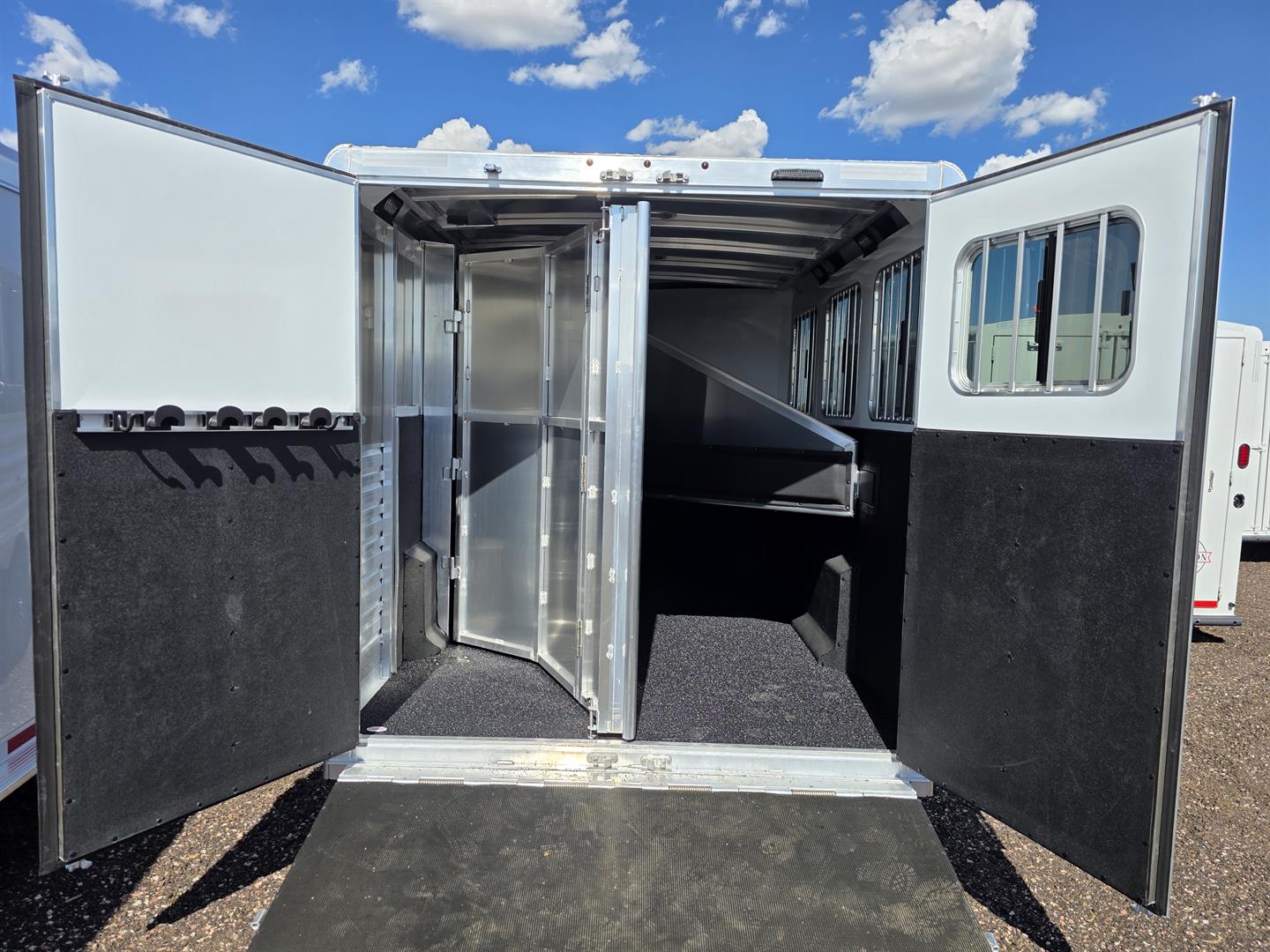

• Double rear loading doors with cam locks and locking hasps

• Full-width rear rubber bumper

• Full-length running boards with teardrop fenders

• 16" treadplate gravel guard on nose

AXLES, WHEELS & TOWING

• Bumper pull configuration

• Two 5,200 lb rubber torsion axles with electric brakes on 3H models

• Five 16" six-hole aluminum wheels, including matching spare

• 8-ply tires

• Aluminum V-hitch with adjustable 2-5/16" coupler

• 2,000 lb top-wind jack with wheel

• Breakaway switch with battery

• Safety chains with slip hooks

• LED brake lights, running lights, and rear load light

EXISS SAFETY & QUALITY FEATURES

Patented Recessed Slam Latches

The patented Exiss slam latch system is recessed into the stall divider, helping eliminate protruding hardware in the horse compartment. Its spring-loaded design allows easy, one-handed operation.

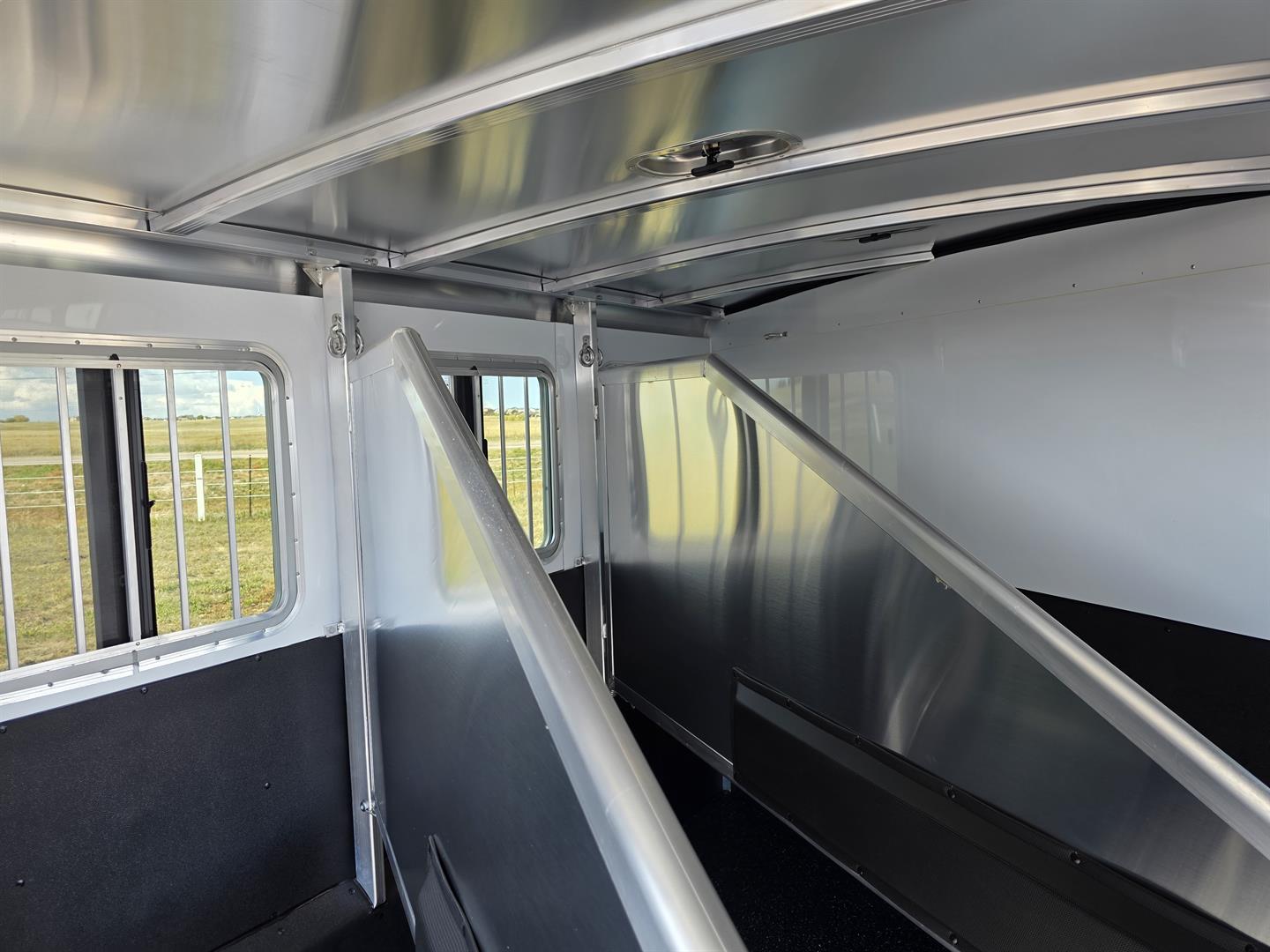

Heavy-Duty Padded Dividers

Exiss stall dividers feature rounded profiles, substantial head and shoulder separators, and protective padding to help provide a safer, more comfortable ride.

Engineered Aluminum Flooring

Full-length interlocking extruded aluminum planks run front to back, supported by aluminum I-beams running side to side. This construction provides a strong, rigid floor structure designed for years of hauling.

Large Ventilation Windows

Generously sized windows on both sides of the trailer provide excellent airflow and natural lighting, helping maintain a comfortable environment for your horses.

WARRANTY

Exiss 3/8 Transferable Warranty

Backed by Exiss's transferable warranty program for added confidence and peace of mind.
